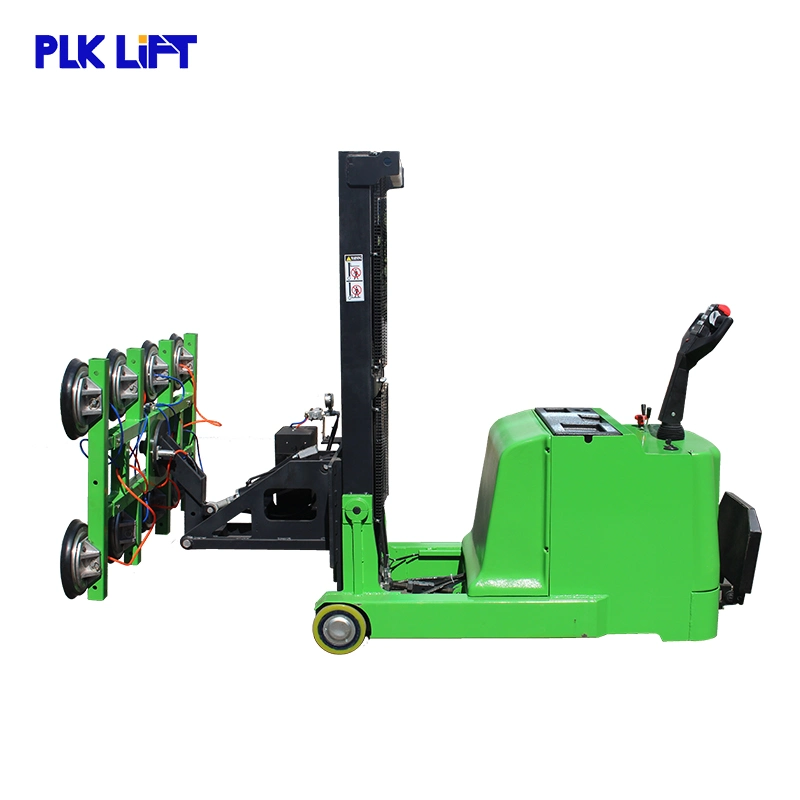

Self Propelled Electric Hydraulic Vacuum Lifter Machine
PLK LIFT - GL-HD series vacuum lifter robot is specially designed for handling different kinds of heavy plate, board and glass, especially when you need to pick up the board and move to the cutting machine. It is very good tool for moving various kinds of material to the CNC machines for further processing. Easily handle lifting and moving with vacuum suction caps and powerful drive system.
| Model | GL-HD-8015(6) | GL-HD-8025(8) | GL-HD-6015(4x30) | GL-HD-4015(4x30) |
| Max. Load Capacity | 800kgs | 800kgs | 600kgs | 400kgs |
| Safe Load Capacity | 400kgs | 400kgs | 300kgs | 200kgs |
| Lifting Height | 1500mm | 2500mm | 1500mm | 1500mm |
| QTY of Caps (customized) | 6pcs | 8pcs | 4pcs | 4pcs |
| Cap Diameter | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Plate Size (or customized) | 3660x2440mm | 3660x2440mm | 2440x1830mm | 1220x1830mm |
| Drive Motor | 24V/900W | 24V/900W | 24V/700W | 24V/500W |
| Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W |
| Battery | 2x12V/160Ah | 2x12V/160Ah | 2x12V/100Ah | 2x12V/70Ah |
| Charger | 24V/20A | 24V/20A | 24V/15A | 24V/10A |
Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
